DRAWMER LA12

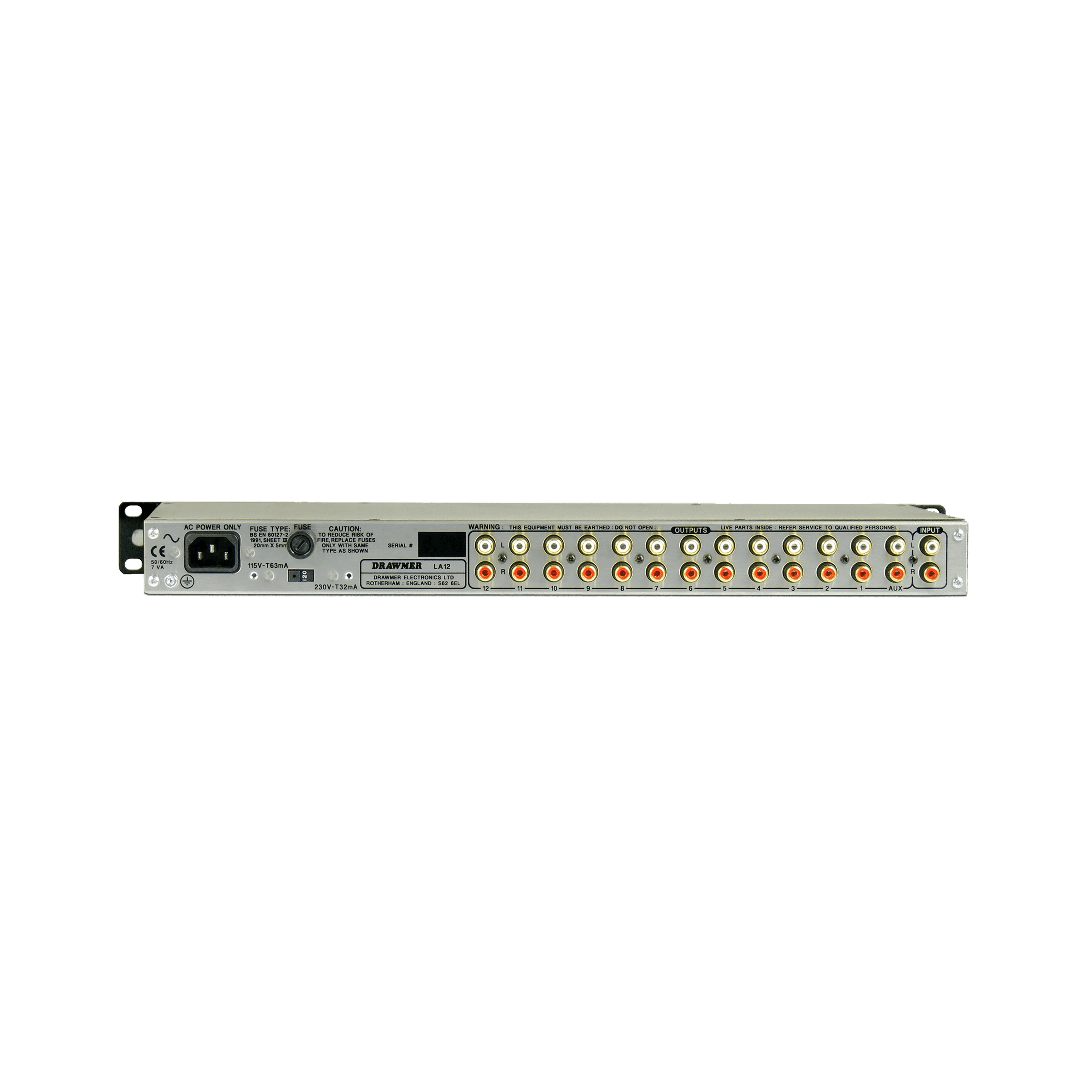

he LA12 is a low noise, low crosstalk distribution amplifier with high bandwidth specification. The unit provides one stereo input with master ‘gain’ and ‘balance’ controls and twelve stereo outputs, each with individual output level control. It may be used to distribute one stereo signal to up to twelve different outputs. A typical application example would be for the distribution of one stereo signal to other rooms/areas within a complex e.g. nightclub, shopping mall etc., but it may be used for a variety of other applications, such as real time cassette duplication. An unbalanced line distribution amplifier, with one stereo input and 12 stereo outputs on RCA (phono) connectors. The LA12 has variable input gain, -80 (off) to +10dB, and left/right input balance. All stereo outputs have individual gain controls (-40 to +10dB). An auxiliary stereo output is available on the rear panel for linking to further LA12’s if more than 12 outputs are required.
