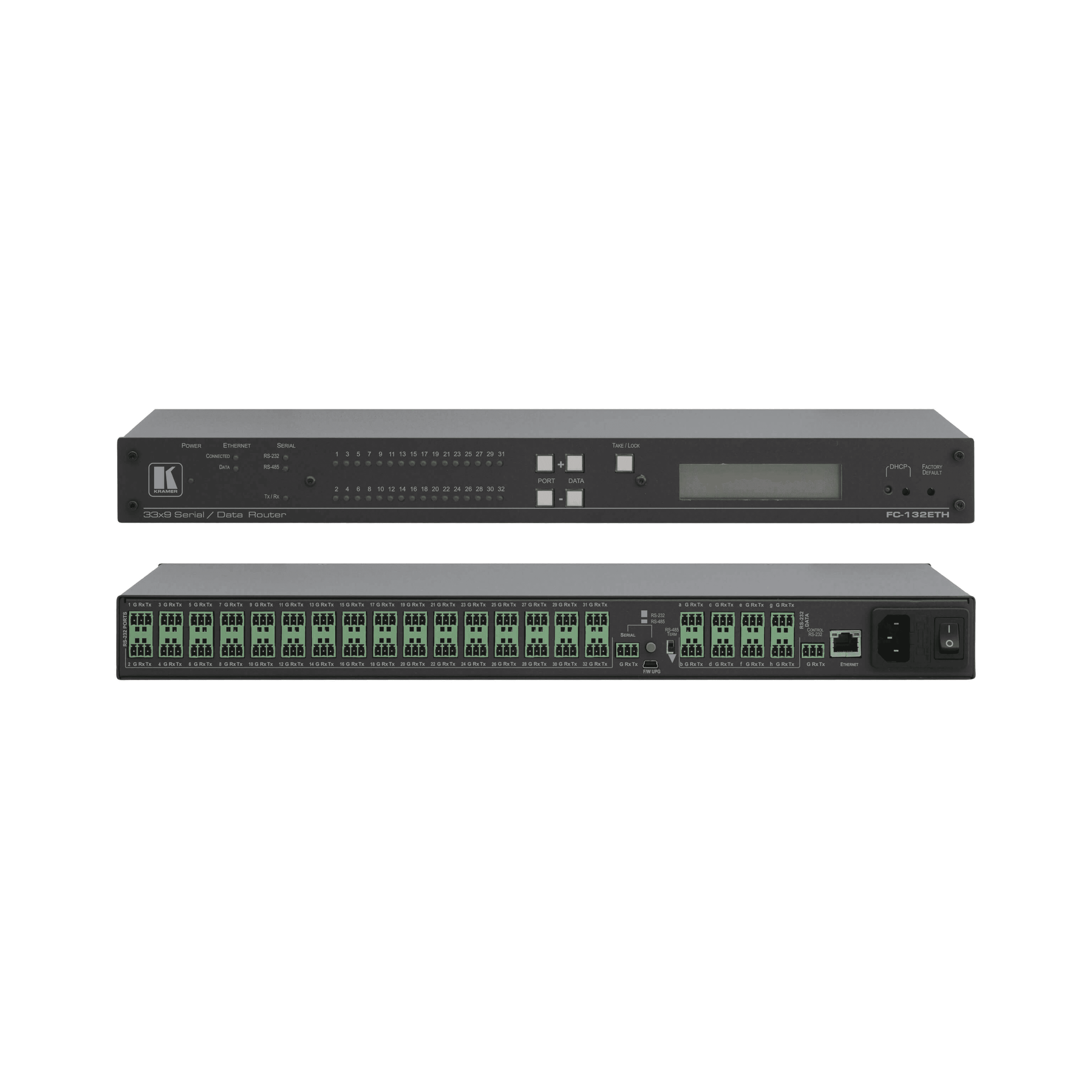

KRAMER FC-132ETH

32–port Serial Control Gateway and Advanced Serial Communication Matrix

Contact Us for Pricing Details

Key Features

32 Bidirectional RS–232 output ports
1 Bidirectional RS–485 or RS–232 output port
8 Bidirectional RS–232 input ports
4 panel buttons and LCD display for ports switching control
1 panel button for switching take or lock control

The FC−132ETH is an advanced Ethernet control gateway and serial communication matrix, capable of plug and play deployment over a customer Ethernet LAN. Serving as an advanced serial communication matrix, the FC−132ETH has 32 RS−232 and one RS−232/RS−485 output ports. Serial communication data is switchable to one or more of the eight RS−232 input ports. This can be done according to local control of panel buttons or RS−232 control port, or remote control via Ethernet port control protocol or web−page browsing. Depending on matrix routing, one−to−one bidirectional or one−to−many unidirectional serial switched communication is supported. Serving as a control gateway, FC−132ETH is capable of remote bidirectional control of customer−controlled devices serially connected to its 32 RS−232 and one RS−232/RS−485 input ports. Multiple control clients can be IP−connected to the FC−132ETH control gateway for concurrent control of two RS−232 or RS−485 controllable devices, such as AV scalers, video displays, and audio amplifiers.
