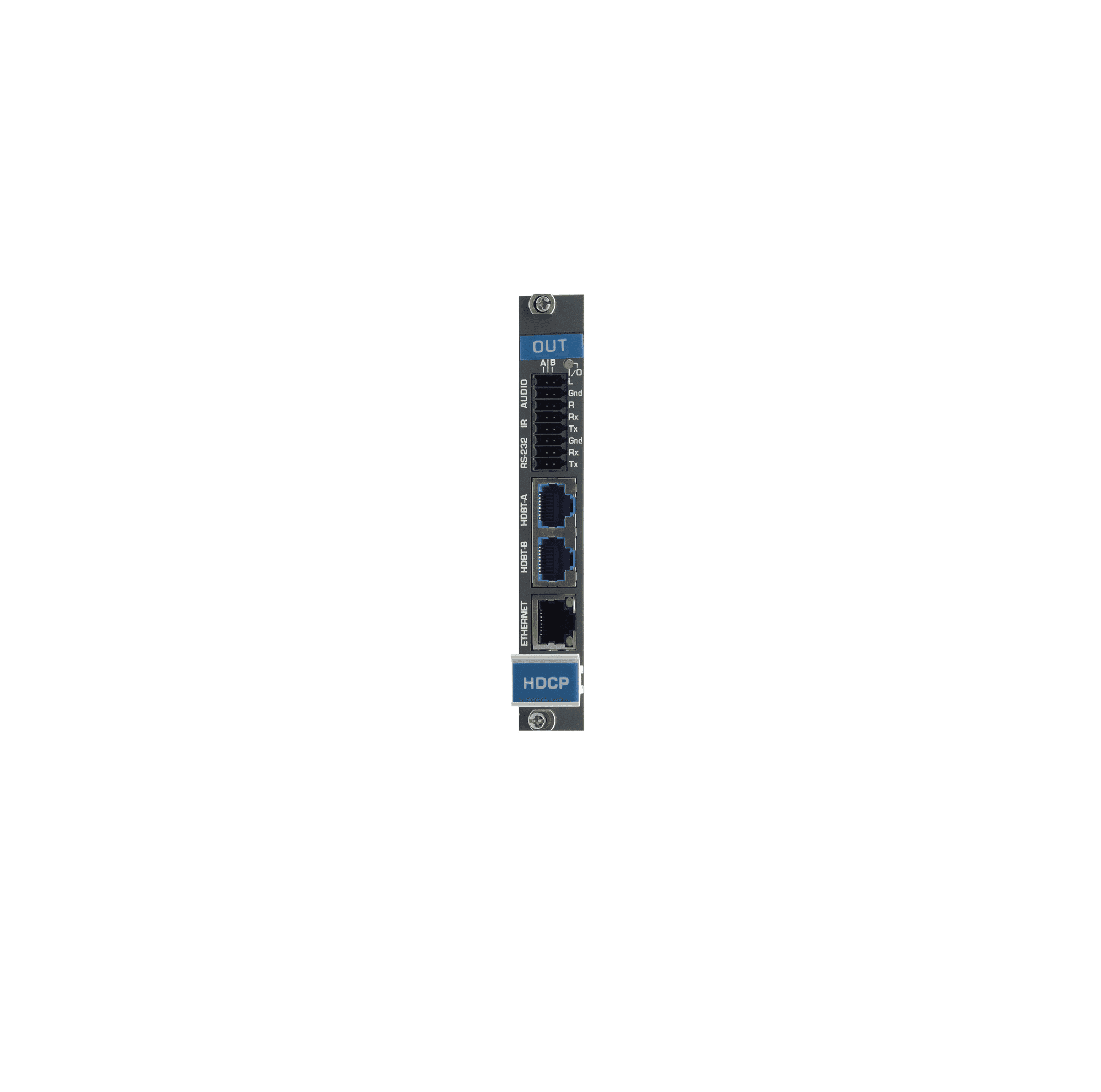

DTAxr−OUT2−F16 is a two−channel HDMI, analog audio, bidirectional RS−232, Ethernet, & IR over HDBaseT twisted pair transmitter card for the VS−1616 Series Modular Multi−Format Digital Matrix Switchers. The DTAxr−OUT2−F16 outputs two extended reach HDBaseT signals with selectable embedded/de–embedded analog audio, bidirectional RS−232, IR, and Ethernet from the chassis to the line.
Max. Data Rate — 10.2Gbps (3.4Gbps per graphic channel).
Max. Resolution — 4K@60Hz (4:2:0).
