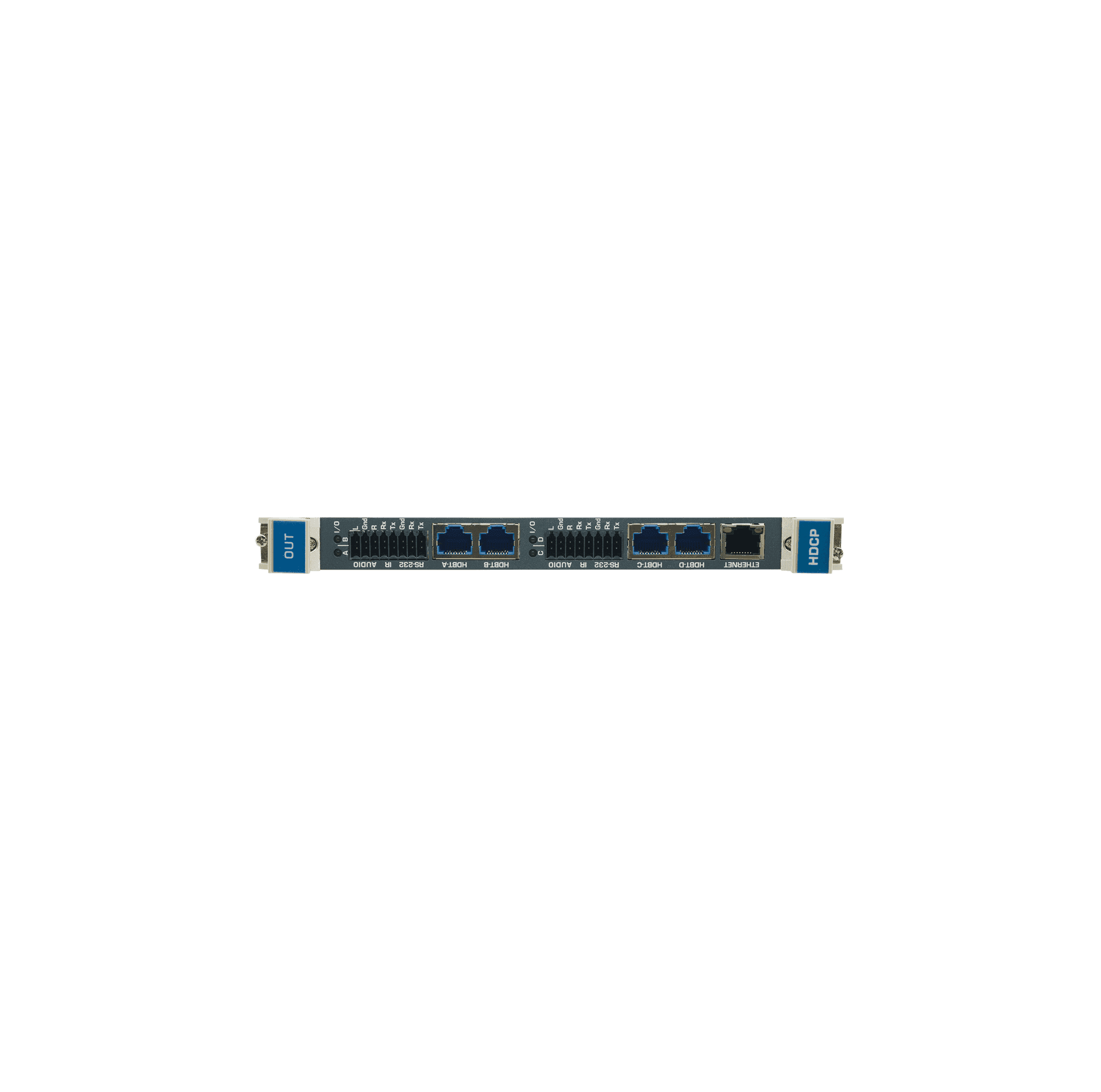

DTAxr−OUT4−F32 is a four−channel HDMI, analog audio, bidirectional RS−232, Ethernet, & IR over HDBaseT twisted pair transmitter card for the VS−3232 Series Modular Multi−Format Digital Matrix Switchers. The DTAxr−OUT4−F32 outputs four extended reach HDBaseT signals with analog audio, bidirectional RS−232, IR, and Ethernet from the chassis to the line. Max. Data Rate — 10.2Gbps (3.4Gbps per graphics channel).
Max. Resolution — 4K@60Hz (4:2:0).
Analog Audio Embedding/De–embedding — On the same jack.
HDBaseT Technology — HDTV compatible, HDCP compliant.
